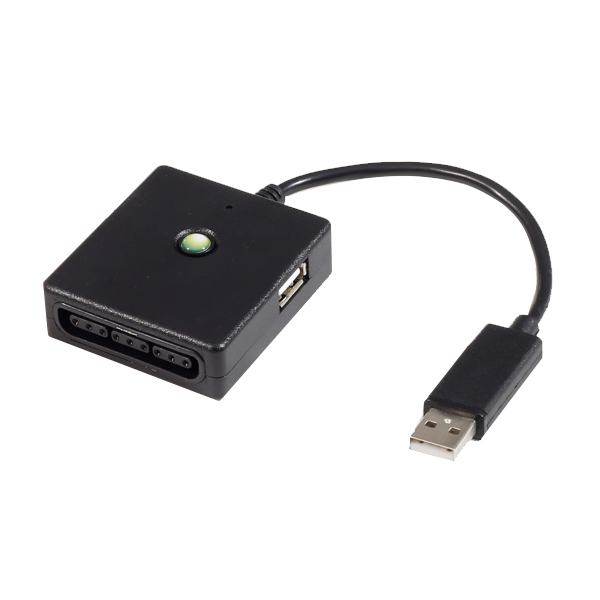

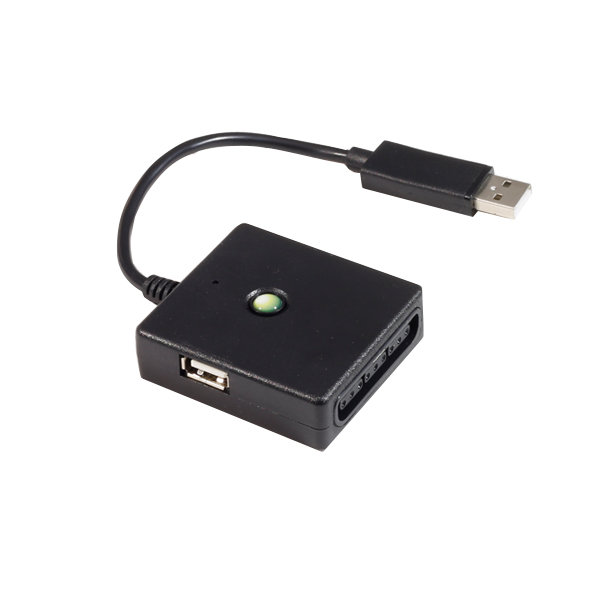

Connection about the converter
After you connect the controller according to the following steps, you can make DJMAX RESPECT mode work normally.
- Connect the PlayStation 2 connector of the controller to the PlayStation 2 connector of converter
- Connect PlayStation 4 gamepad to any USB connector in the both side of the convertor with a USB cable
- Connect the USB of the converter to PlayStation 4 body
- Connect the red USB connector of the controller to PlayStation 4 body
The blue pilot light of the converter should turn green, and keep shining after flashing about 30 seconds, then you can play game

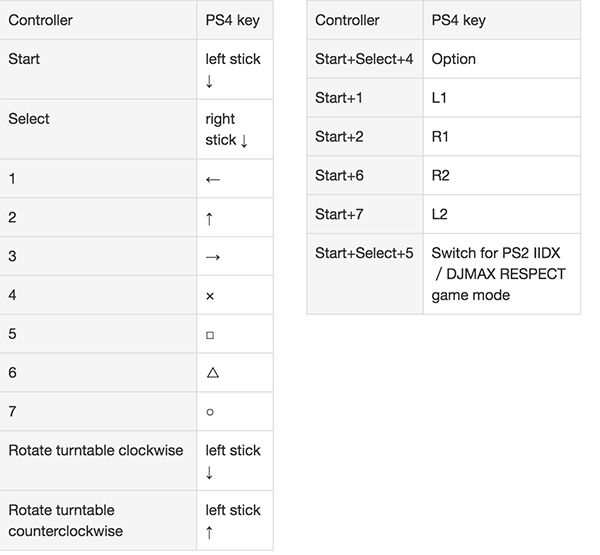

Mode switch Press start+select+5, simultaneously about a second, PS2 IIDX mode and DJMAX RESPECT mode of the controller can be switched repeatedly
