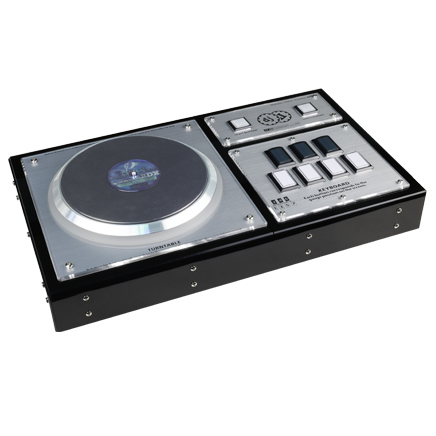

Platinum Edition Evolution EMP

SS001 V1.22 FIRMWARE

Use highest frequency of 1000Hz to keep steady output;

Not HID-keyboard mode, but the only one supports INFINITAS directly in the world, which can adjust LaneCover and LIFT precisely;

With super high class turntable algorithm, when you rotate turntable back and forth, the judgements are all the same, and no any lag;

To make sure that the accurate value of button output reaches 1ms, the button signal is optimized separately. Support turntable perfectly On LR2;

Special function on LR2, LaneCover and LIFT can be adjusted with turntable; Support HID-light perfectly;

Double click and triple click of select BUTTON can achieve the function of the third button;

Both on PS2 and on PC, the problem that turntable misfires and the problem of sensitivity will be solved.

1. It is possible to switch the sensitivity of the turntable quickly.

2. The turntable can be activated via shorter moving distance.

3. Quicker response without any lag.

4. The fluency that you choose songs on PC.

5. Use 250Hz on PC, the reporting time is 4ms.

On PC please pay attention that:

1. Don’t use HID-USB software to refresh the reporting frequency, 250Hz is the highest frequency. It will lead to unknown mistake, if you increased the frequency artificially.

2. 250Hz will not affect the scores during actual game-play.

Platinum Edition Evolution 2013 have released:

• Narrowing the gap between the turntable and aluminum ring , to avoid the little finger being stuck accidentally or hurt in the gap while playing;

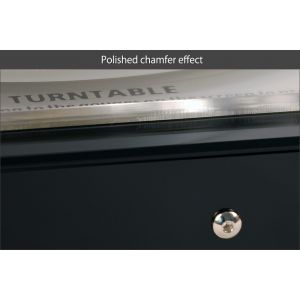

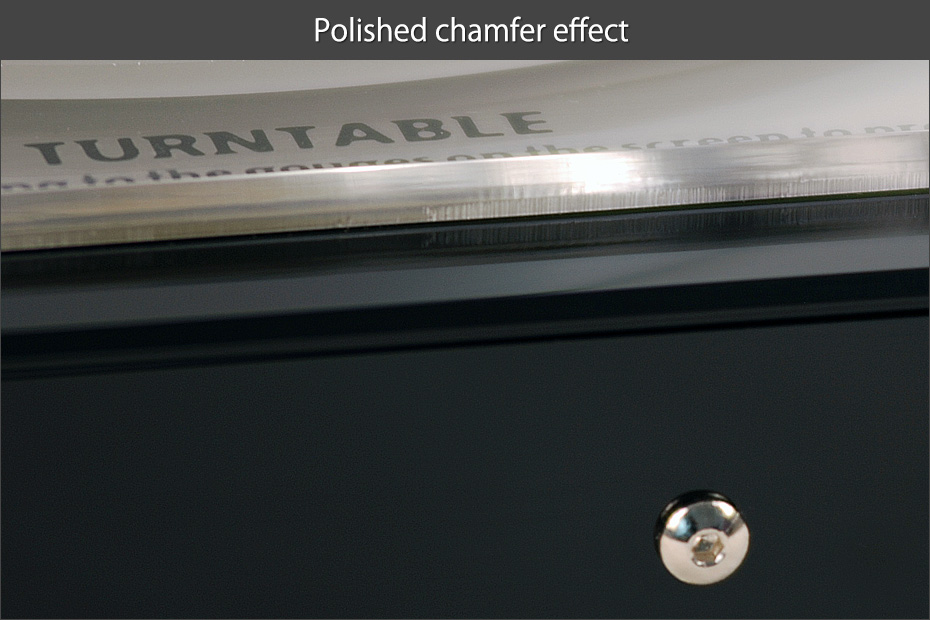

• Cutting transparent acrylic ring with new CNC, 45 °bevel feels more smooth and beautiful ,which is better than AC;
• With 15 screws of the old editon of PEE being removed from the black surface acrylic panel, the appearance looks more amazing.
• The assembled panel hypotenuse adopts the latest CNC cutting, with smooth surface

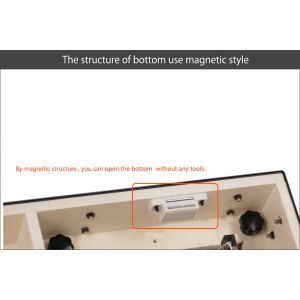

• Using magnetic mode for bottom case, without screws, which makes the maintenance become more convenient

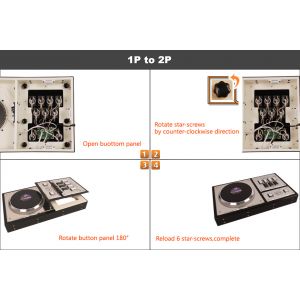

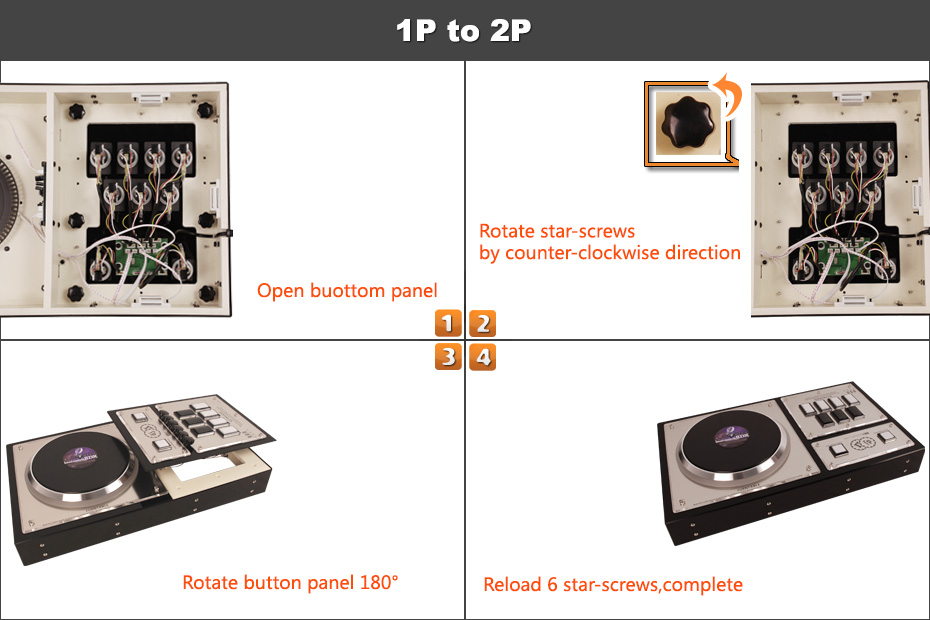

• You can replace 1P and 2P without any tool: open bottom case，unscrew the 6 screw handwheels, rotate button panel 180 °，then 1P and 2P can be replaced in 2 minutes conveniently.
• The gear has been redesigned, new gear adopts mold injection, the material is German ABS material, whose degree of deformation is much smaller than the old edition. The problem of gear hitting the photoelectric can be avoided basically, also, there is no "squeaky" noise. With longer diameter, the turntable becomes more sensitive

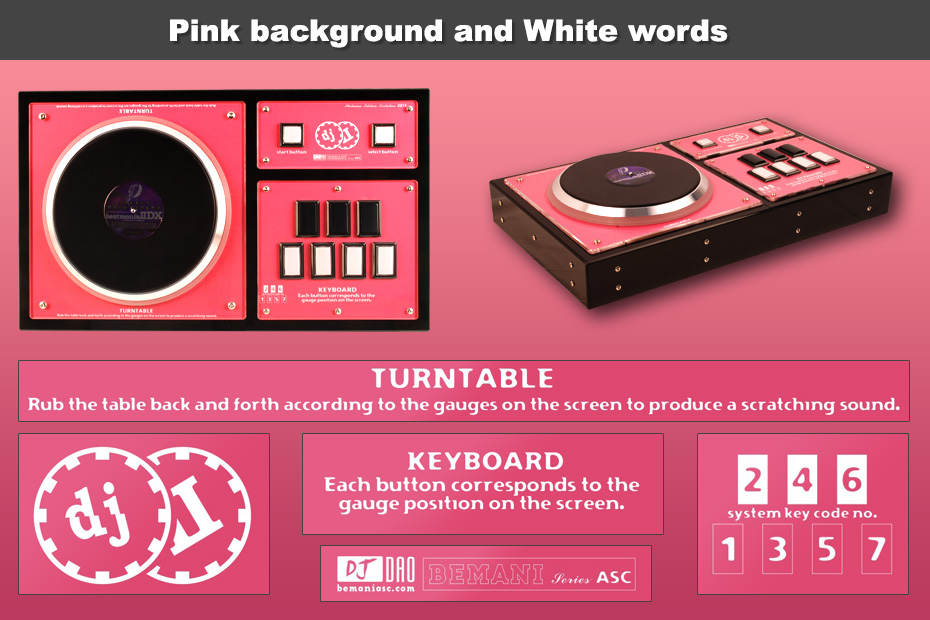

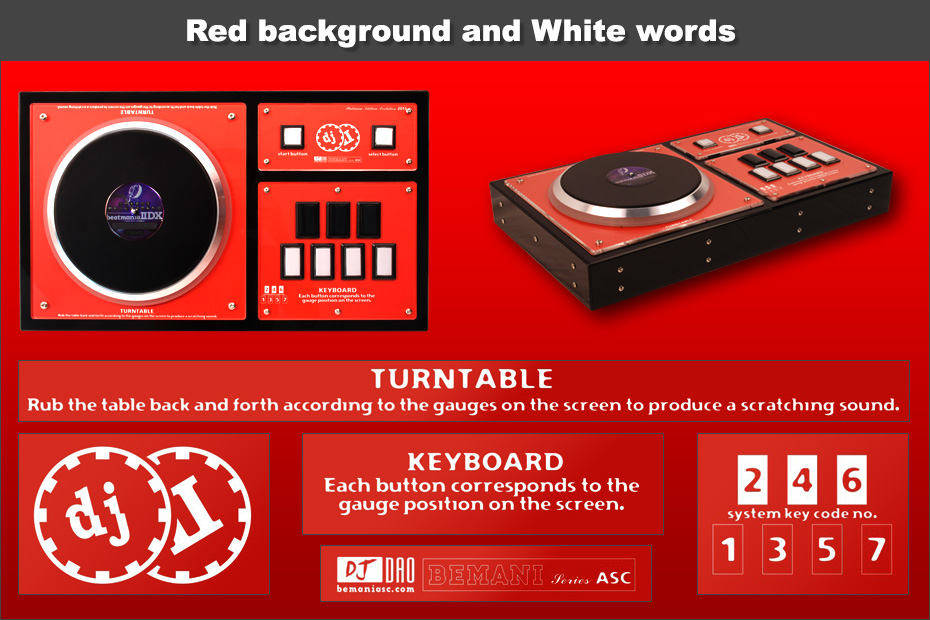

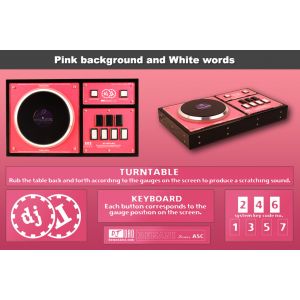

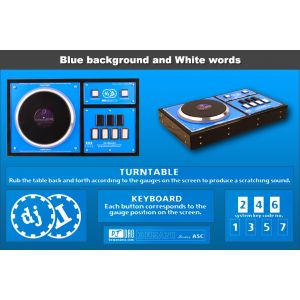

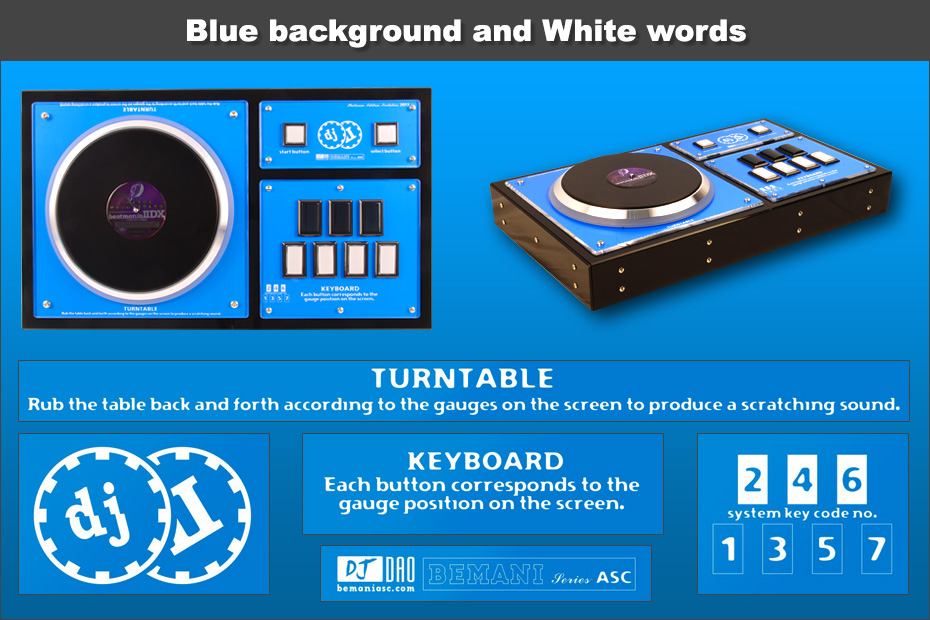

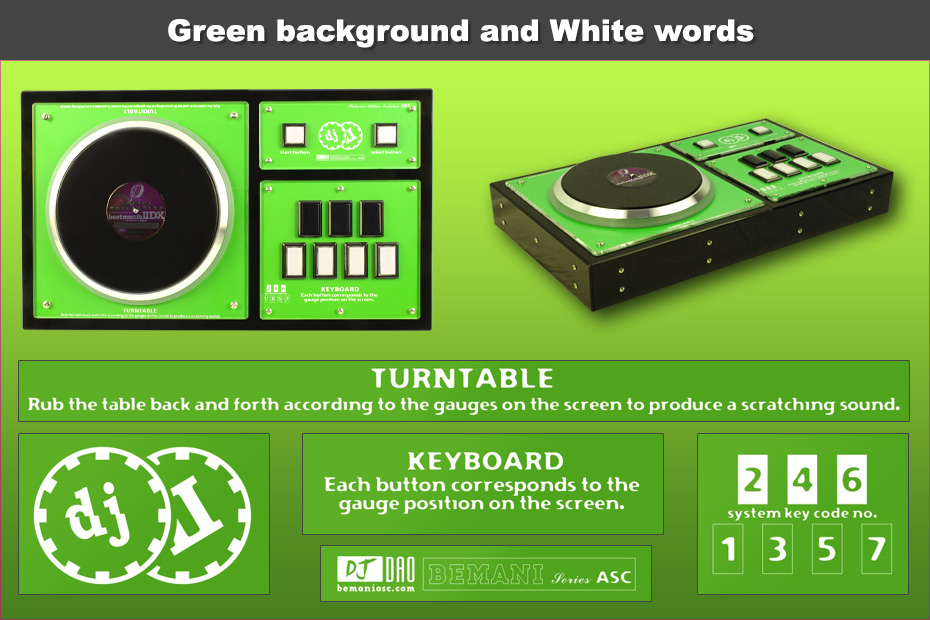

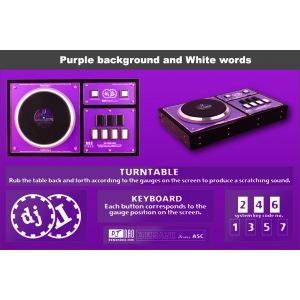

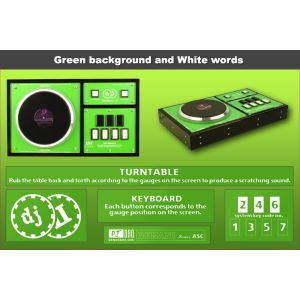

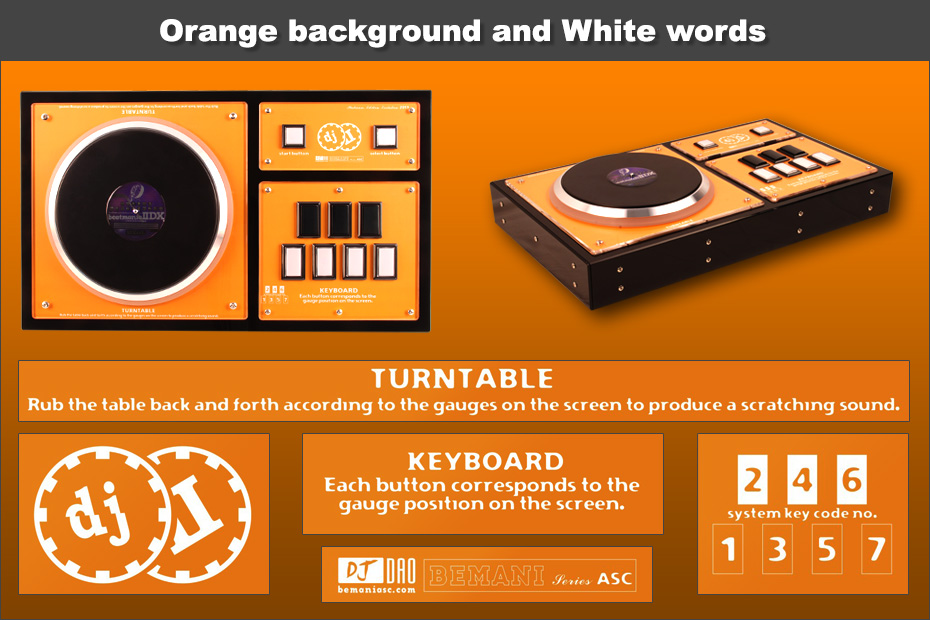

• The background panel has 7 different colors for your choosing, namely silver , red , orange , green , blue , pink and purple, gold and black will be increased in the future.

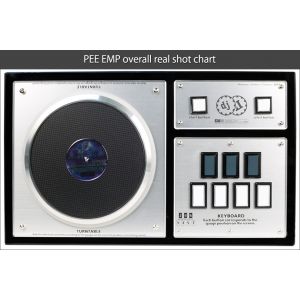

Platinum Edition Evolution 2nd is the first DJDAO products using AC specifications controller, which is created in 2006. It have a form name that is  the “Platinum Editon”, which is abbreviated as “PE”. It has experienced 2 times of appearance upgrade and 4 times IC upgrade .

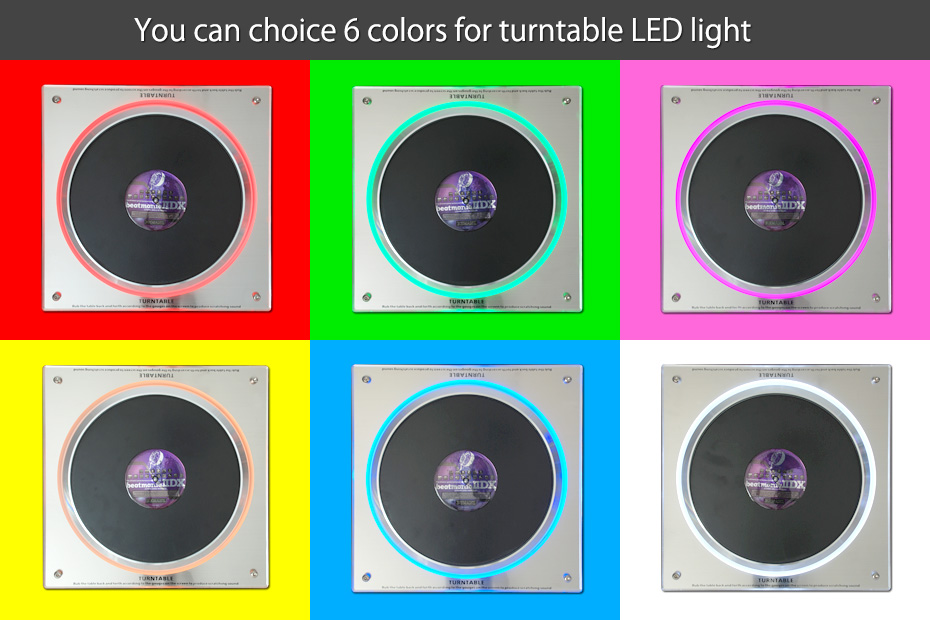

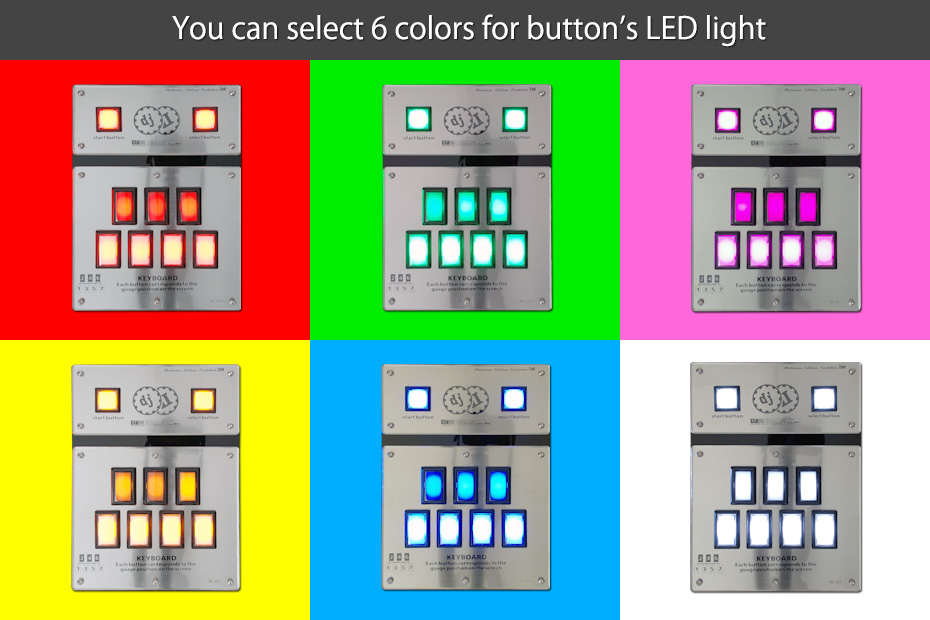

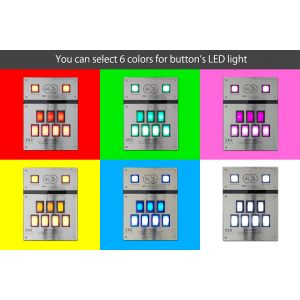

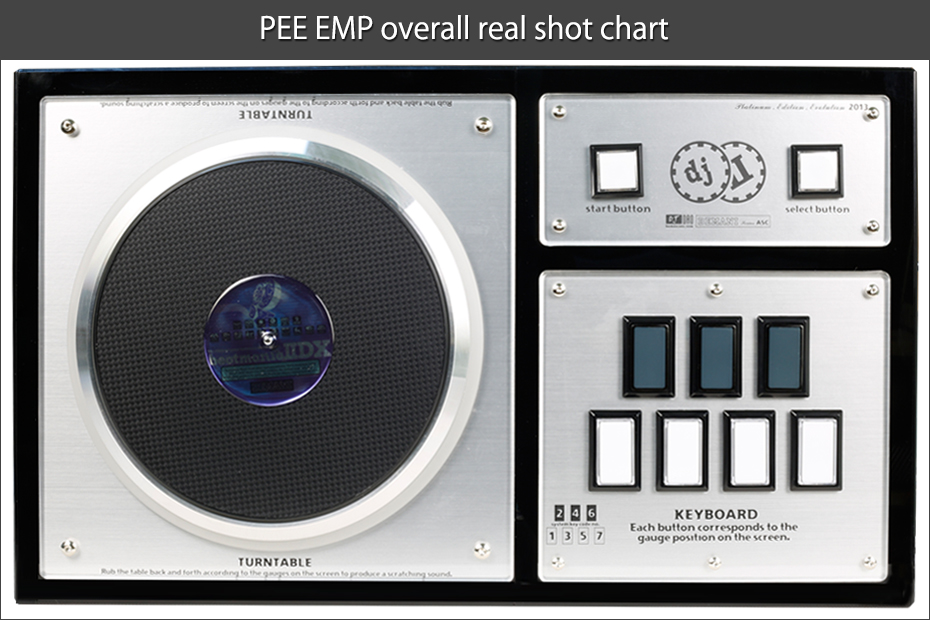

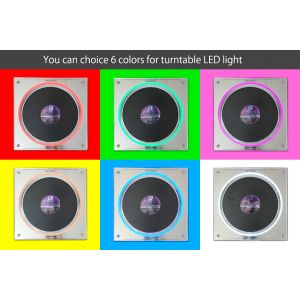

• PEE 2nd has AC standard size and its shell use full black acrylic, its frame structure is PVC. The color of ring-light and buttons can be customized, you can also choose your favorite color for panel.

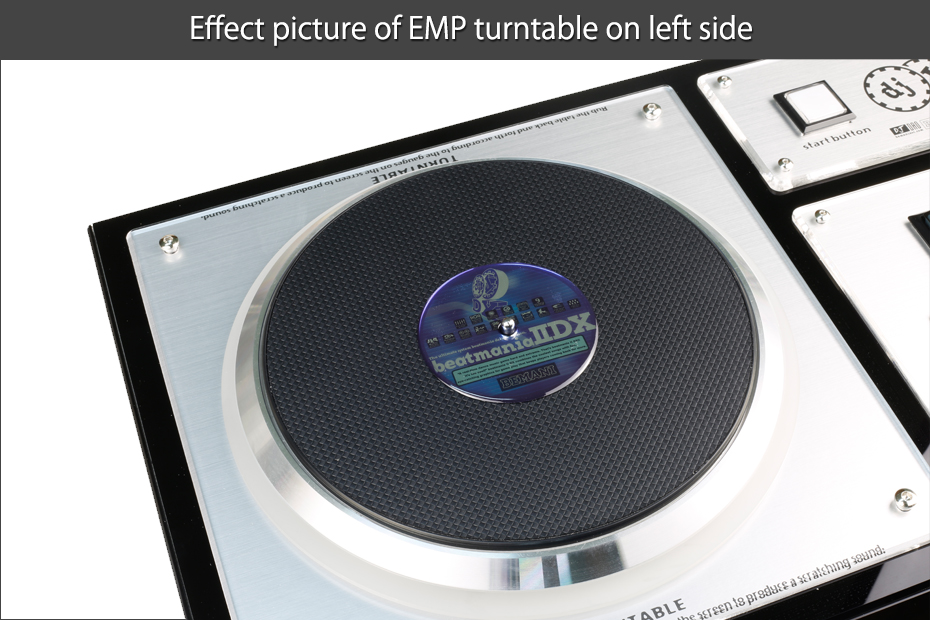

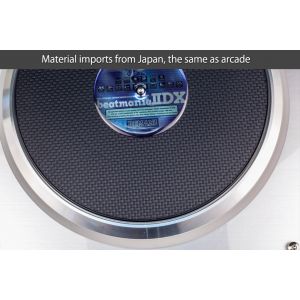

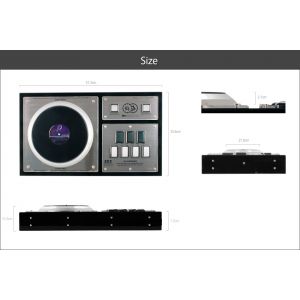

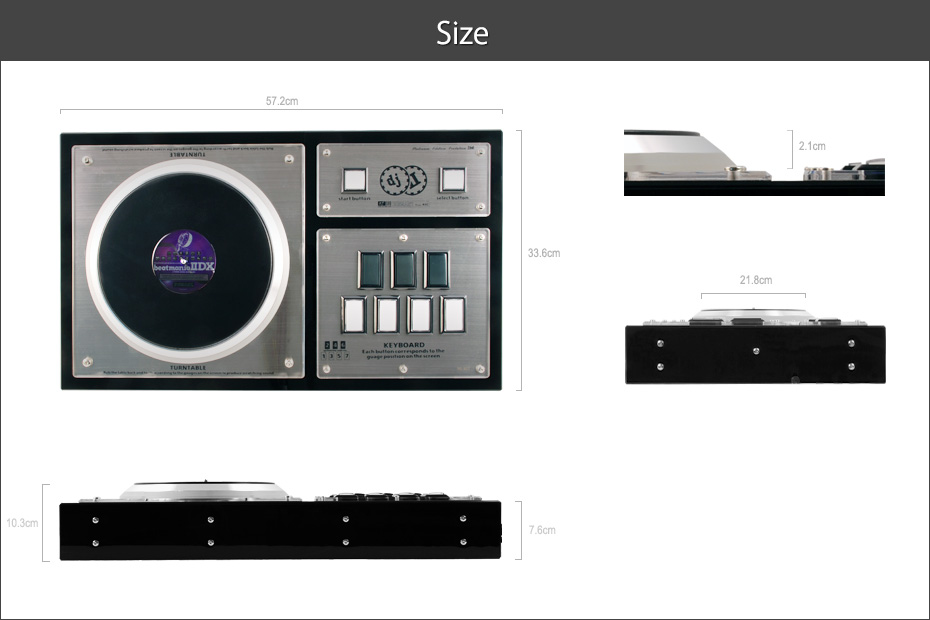

• The height of PEE 2nd turntable are 21 mm, which is the same as arcade. The turntable diameter is 220 mm, which is standard arcade size. You can exercise difficult level tracks at home.

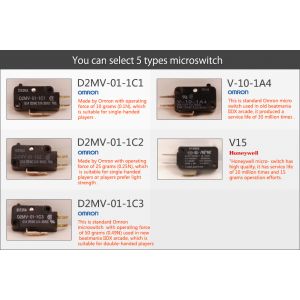

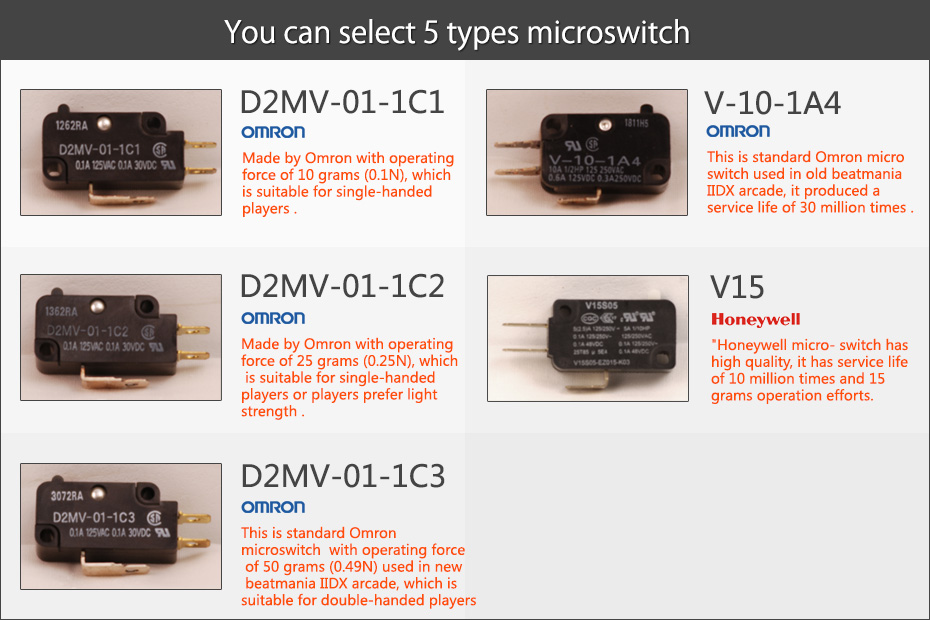

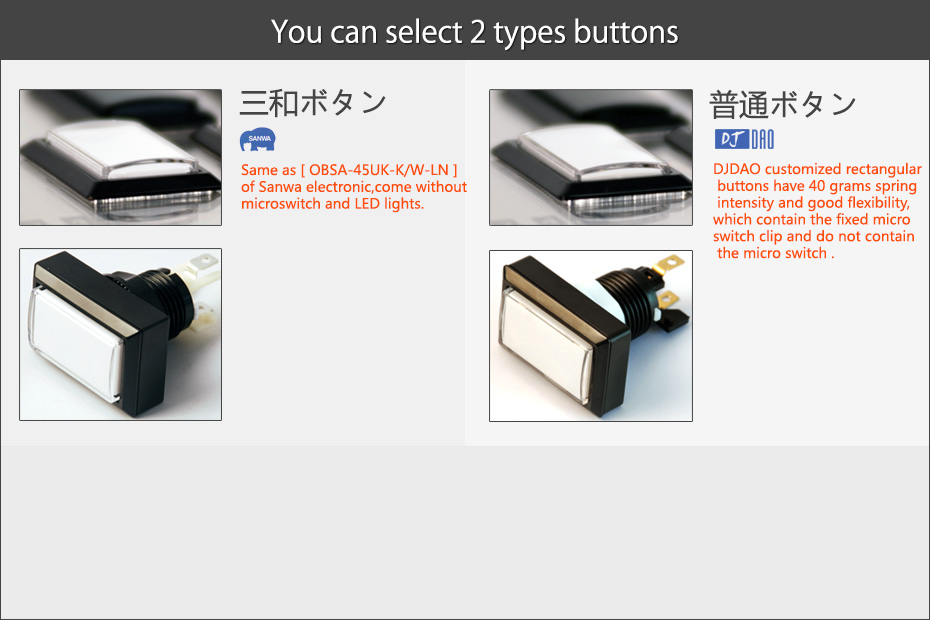

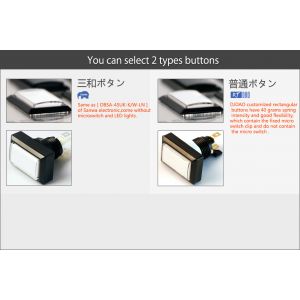

• All buttons are designed as arcade structure , you can choose the custom DJDAO buttons and  SANHE button. The DJDAO custom buttons are cheaper and feel good, SANHE buttons are more expensive, but feel perfect. The beatmania IIDX arcade button use SANHE buttons .
• PEE 2nd use the latest CNC cutting process and imported German acrylic material with smooth texture .
• All DJDAO products select custom screws , the appearance parts use SHCS , which is nice and safe.

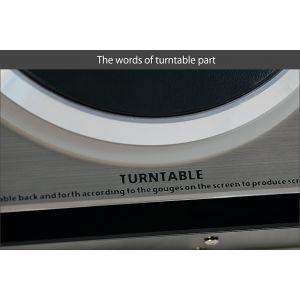

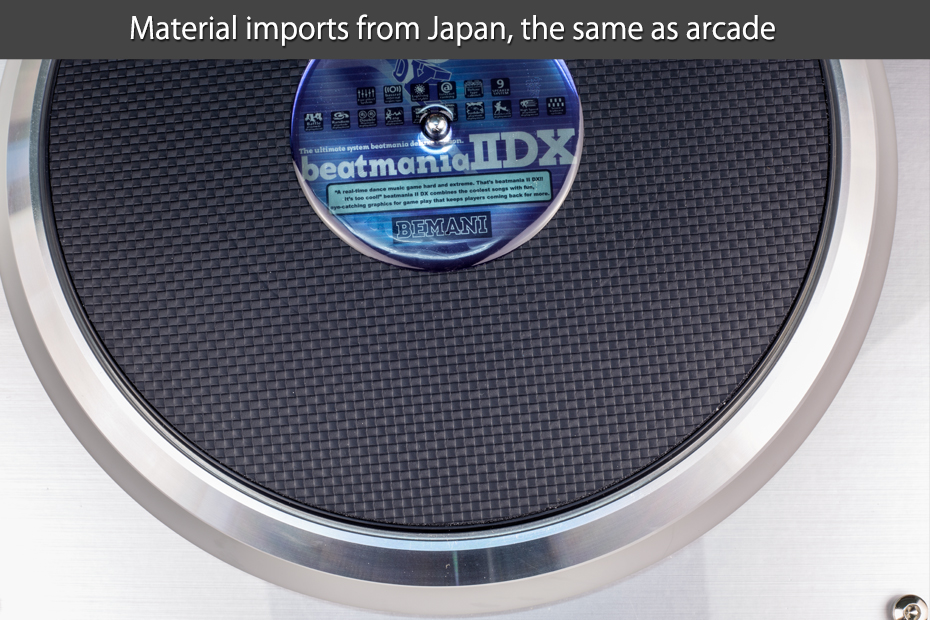

• The LOGO of turntable is copy from arcade machine, which has exactly the same appearance and effects.
• You can replacement 1P and 2P without any tool：Open Bottom case，unscrew 4 screw handwheels and rotate button panel 180.

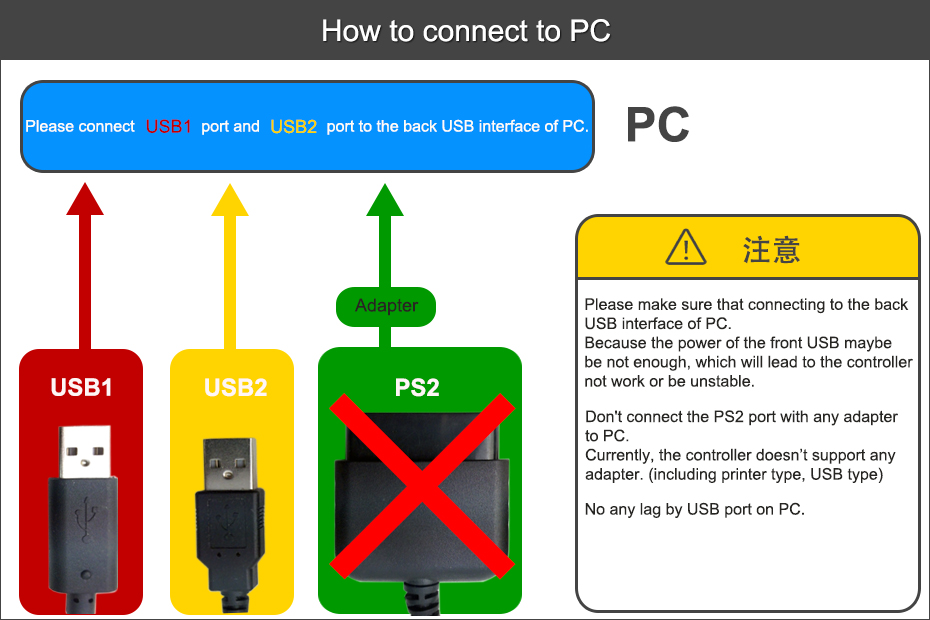

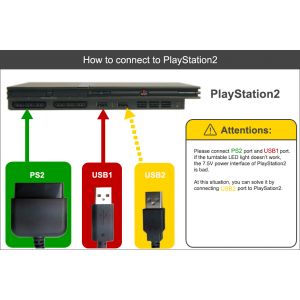

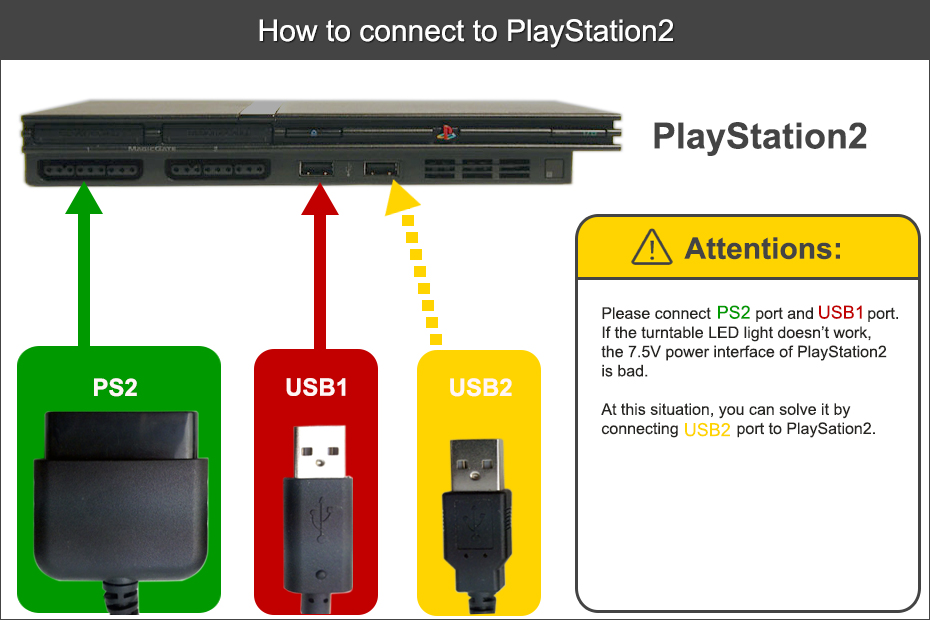

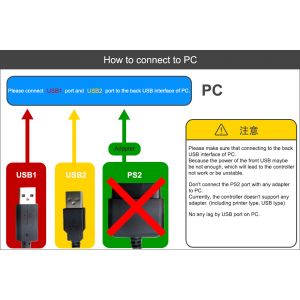

• To use the latest 2012 models of IC, there are 3 interfaces: 1 PS2 interface , 1 USB A male and 1 USB A female. The USB A female is connected with attached  adapter for power supply.  For PS2 use PS2 interface to connect, for PC use USB A male to connect .
• There is no delay for PS2 and 4ms delay for PC ( We use the lowest latency USB chipset in the world currently.
