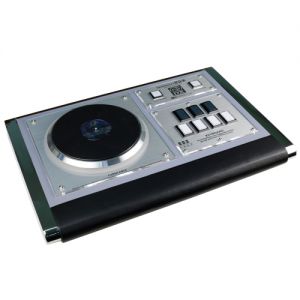

RES

Real Edition Single EMP



$394.00

RES EMP
In stock

SS001 V1.22 FIRMWARE

Use highest frequency of 1000Hz to keep steady output;

Not HID-keyboard mode, but the only one supports INFINITAS directly in the world, which can adjust LaneCover and LIFT precisely;

With super high class turntable algorithm, when you rotate turntable back and forth, the judgements are all the same, and no any lag;

To make sure that the accurate value of button output reaches 1ms, the button signal is optimized separately. Support turntable perfectly On LR2;

Special function on LR2, LaneCover and LIFT can be adjusted with turntable; Support HID-light perfectly;

Double click and triple click of select BUTTON can achieve the function of the third button;

Both on PS2 and on PC, the problem that turntable misfires and the problem of sensitivity will be solved.

1. It is possible to switch the sensitivity of the turntable quickly.

2. The turntable can be activated via shorter moving distance.

3. Quicker response without any lag.

4. The fluency that you choose songs on PC.

5. Use 250Hz on PC, the reporting time is 4ms.

On PC please pay attention that:

1. Don’t use HID-USB software to refresh the reporting frequency, 250Hz is the highest frequency. It will lead to unknown mistake, if you increased the frequency artificially.

2. 250Hz will not affect the scores during actual game-play.

After our efforts, the shortcomings of Real Edition Single 2nd (RES)is improved.

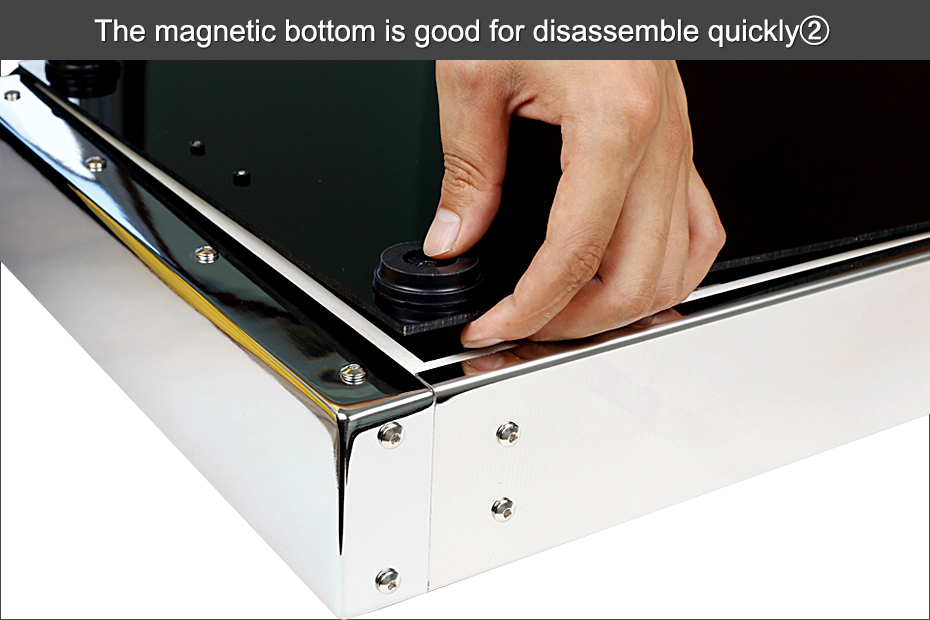

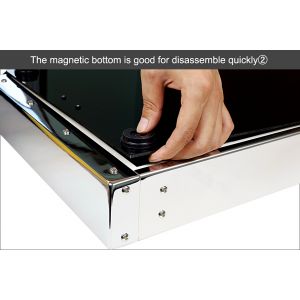

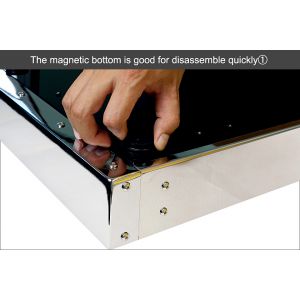

  • By adding magnetic structure make it more easier to open back panel, which is very convenient for maintaining

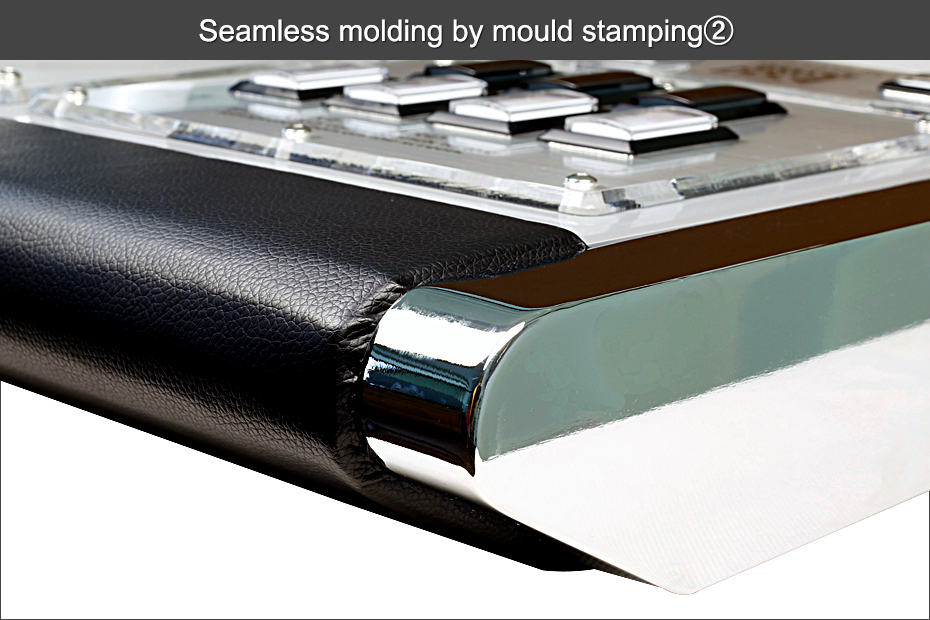

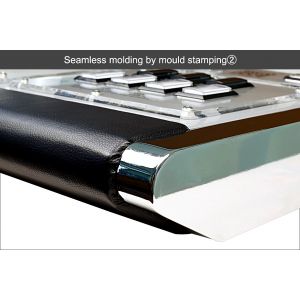

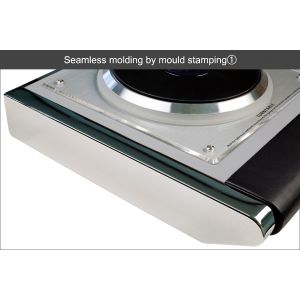

  • Die stamping process is used for the facture of new metal parts, which is more perfect than welding process used before, and with the same effect as arcade.

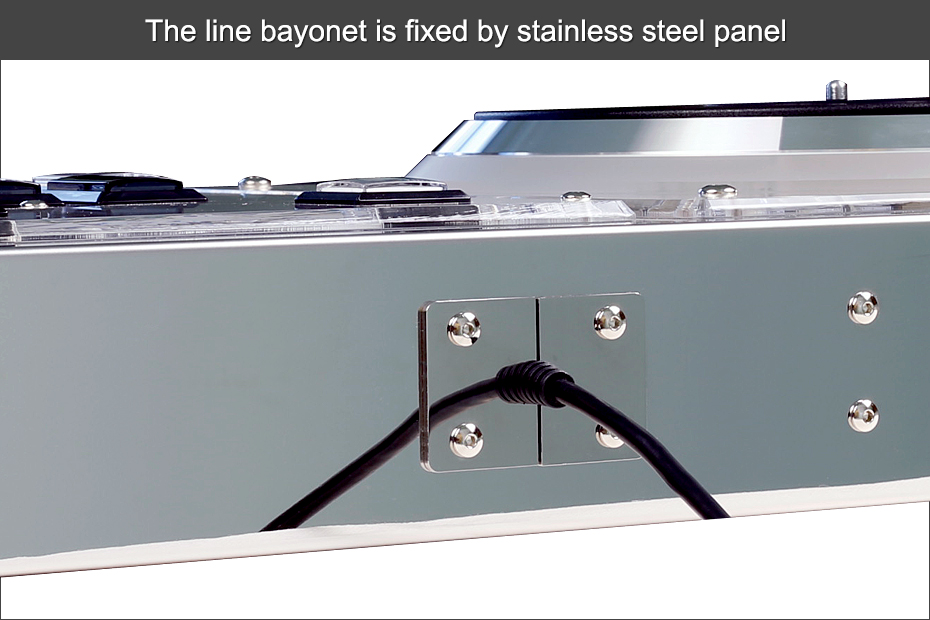

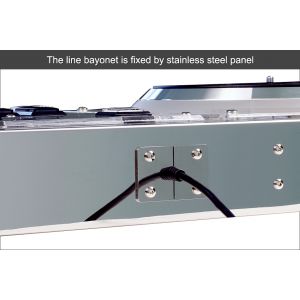

  • Fixed cable device is increased to avoid the damage of the cables which is being used

Real Edition Single (RES) is the first DJDAO products that totally copy the arcade appearance, which is created in 2006. It has experienced 3 times of appearance upgrade and 4 times IC upgrade.

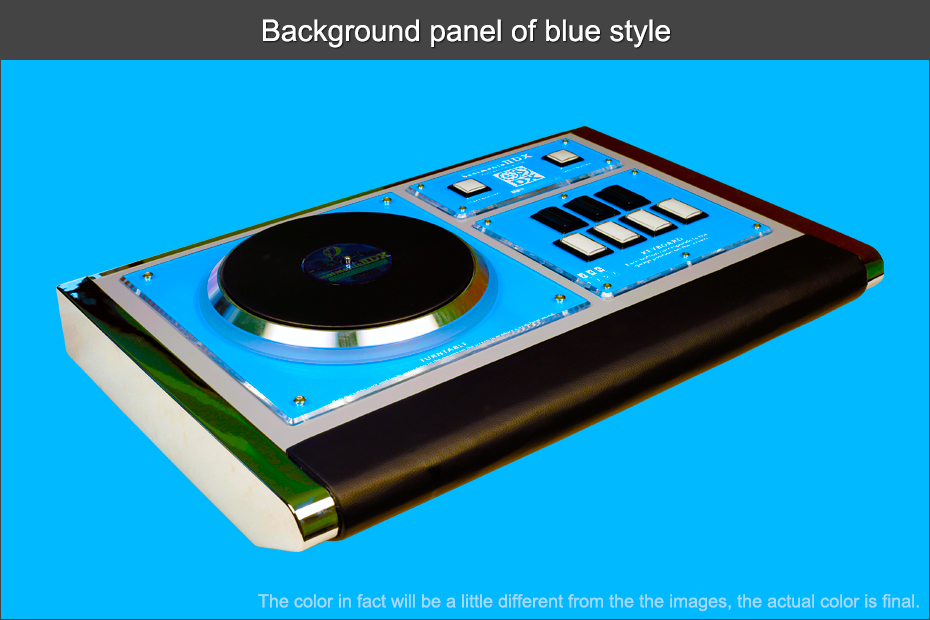

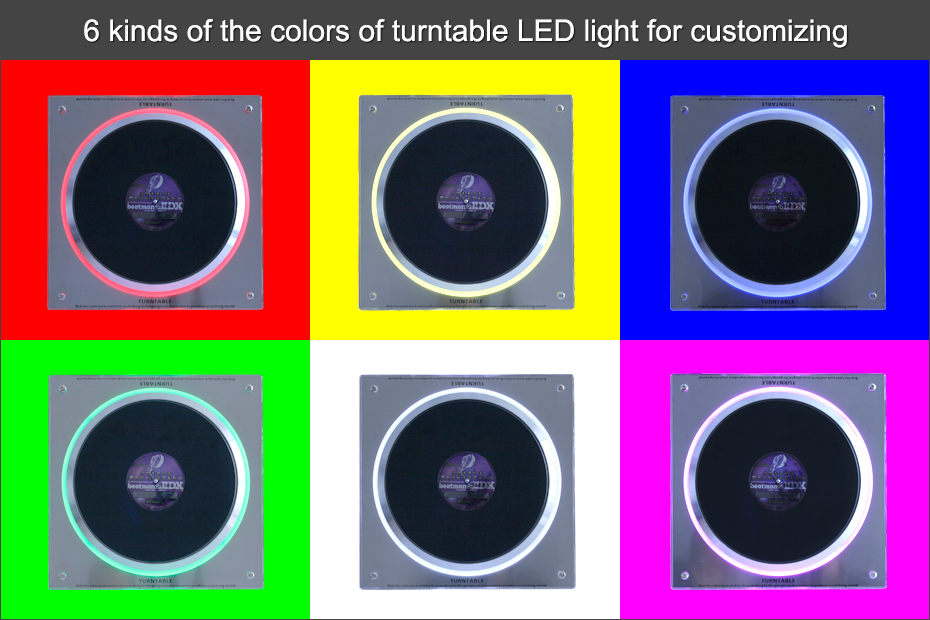

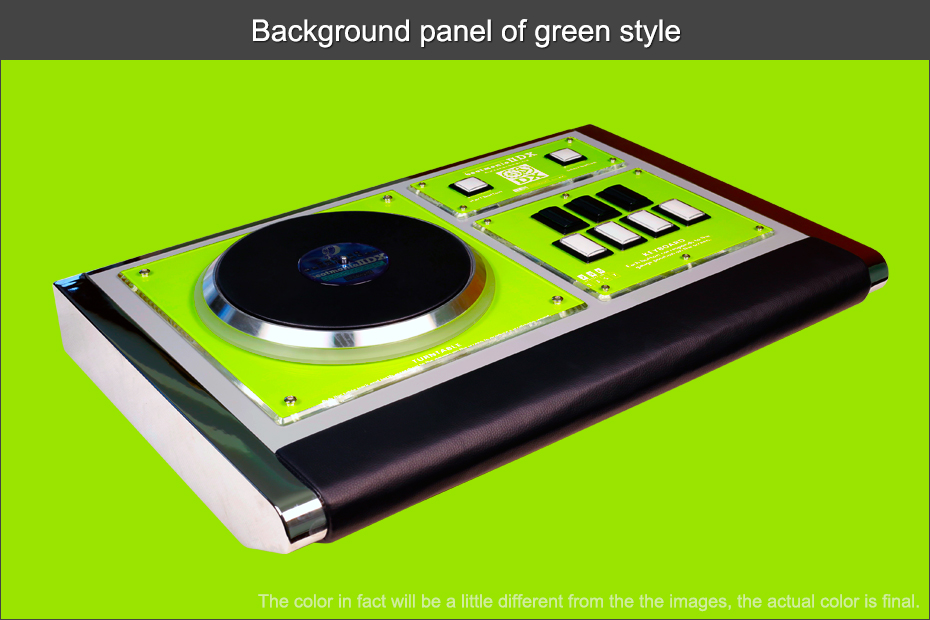

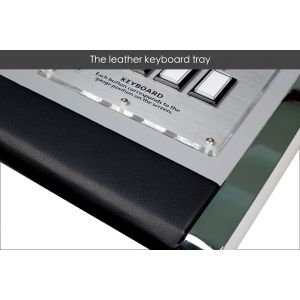

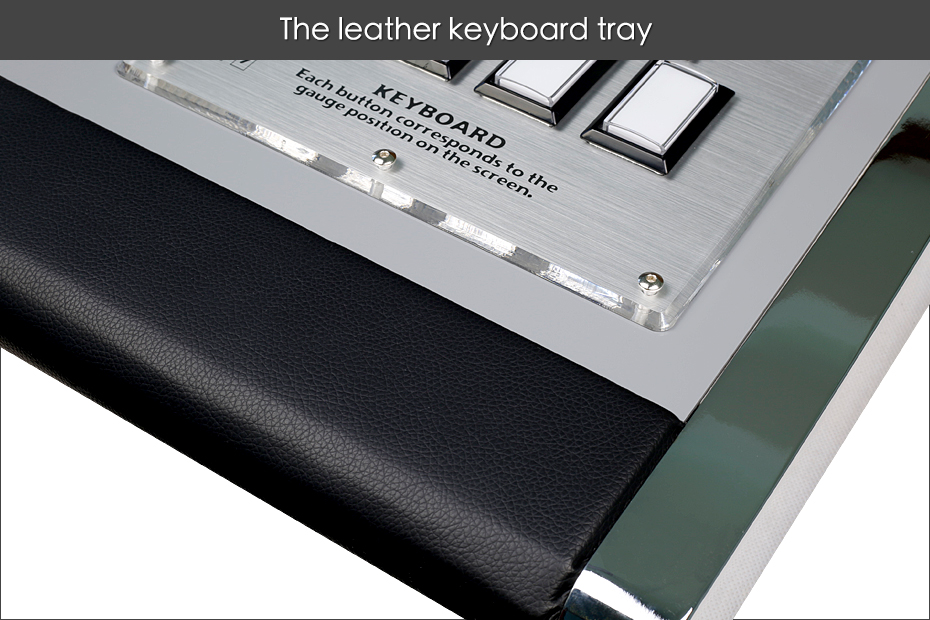

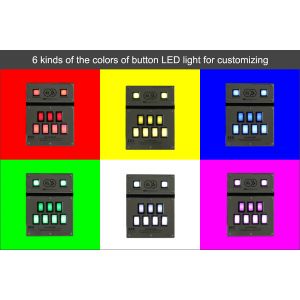

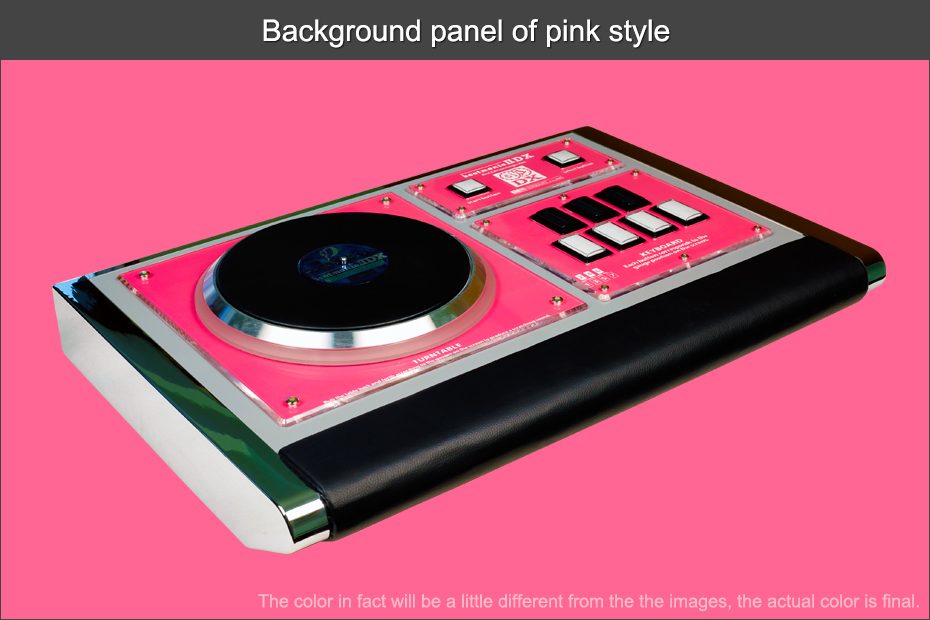

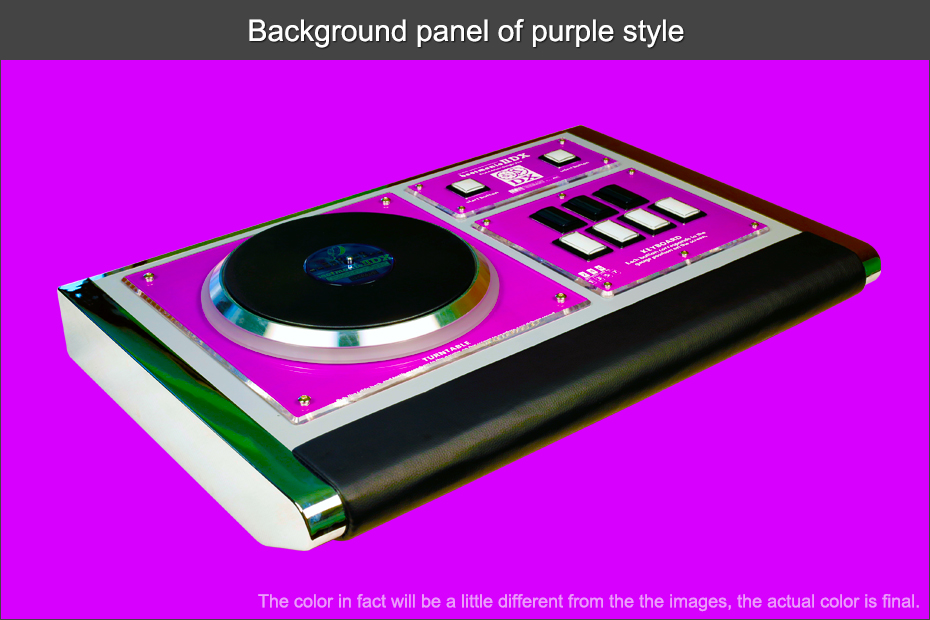

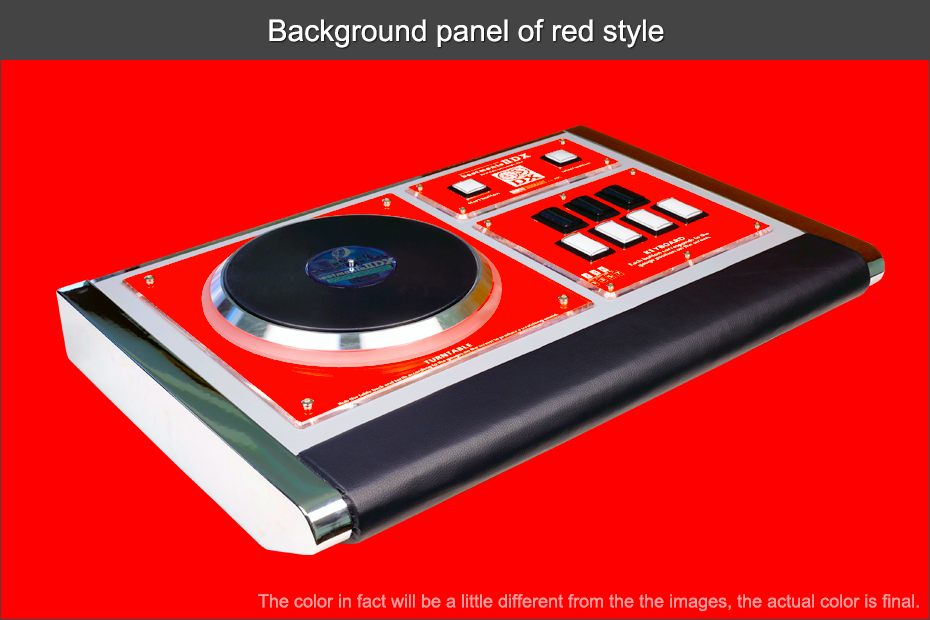

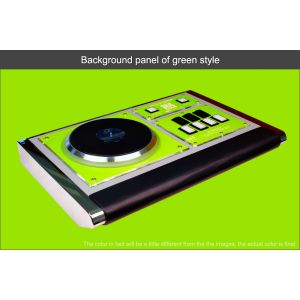

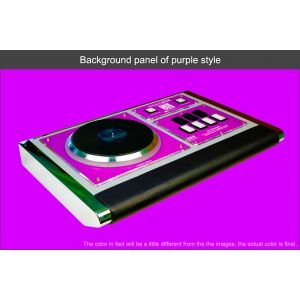

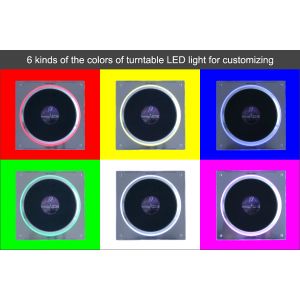

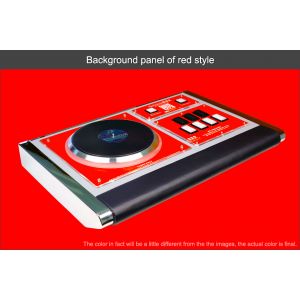

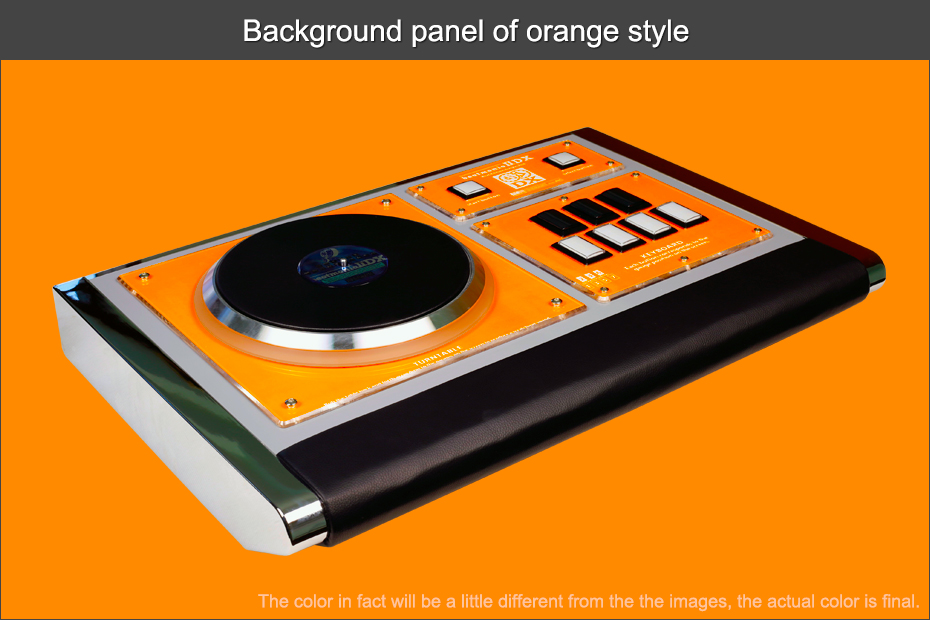

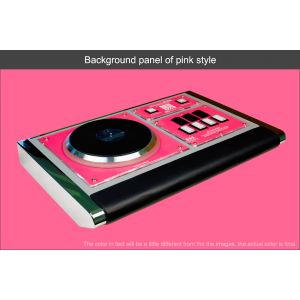

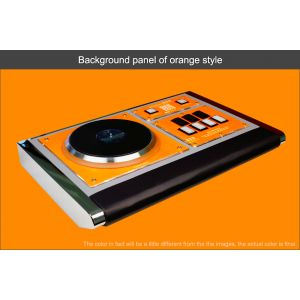

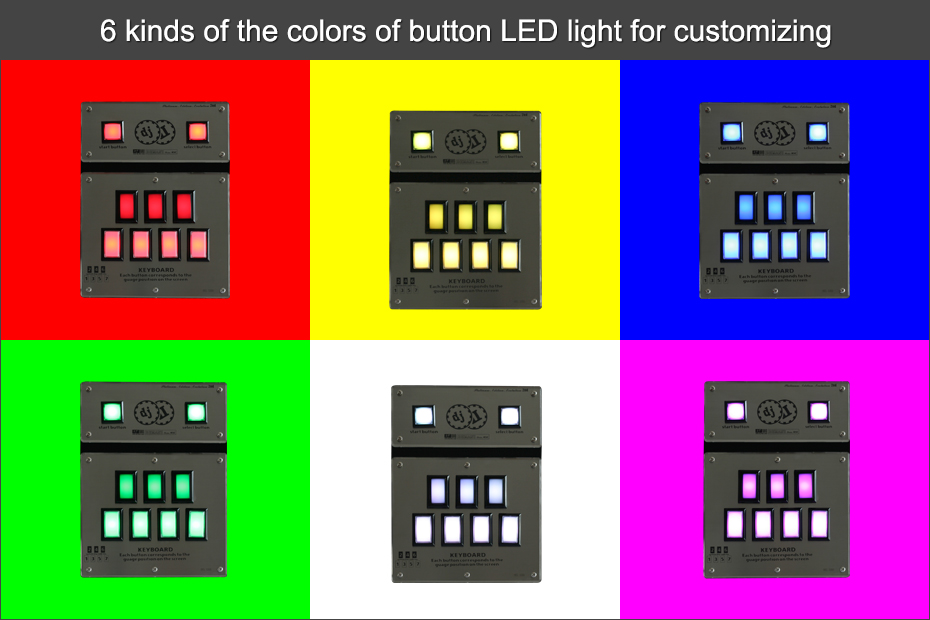

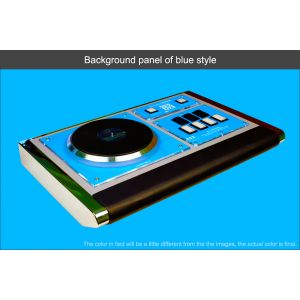

  • RES has standard size of AC, the panel use gray acrylic , which is better than the arcade panel, the button tray uses high quality synthetic leather with cushioning material for buffering , which feels more comfortable; there are stainless steel decoration on both sides of controller, which is the same as arcade. The frame structure is PVC, and the color of ring-light and buttons can be customized, you can also choose your favorite color for panel.

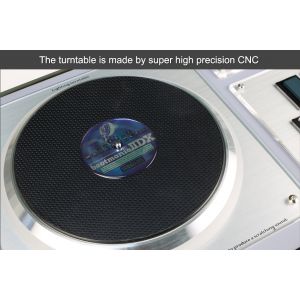

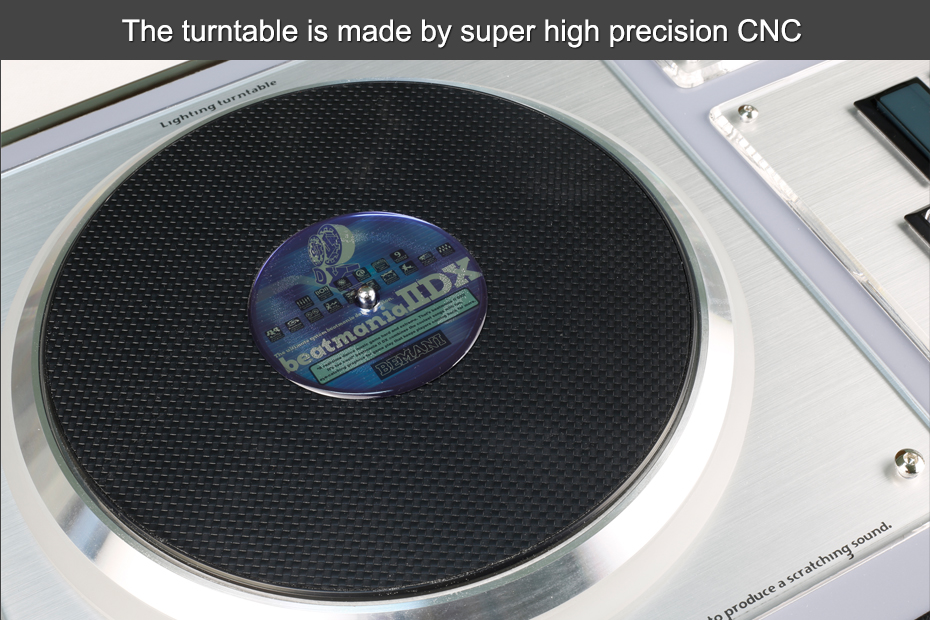

  • The height of RES turntable are 21 mm, which is the same as arcade. The turntable diameter is 220 mm, which is standard arcade size. You can exercise difficult level tracks at home.

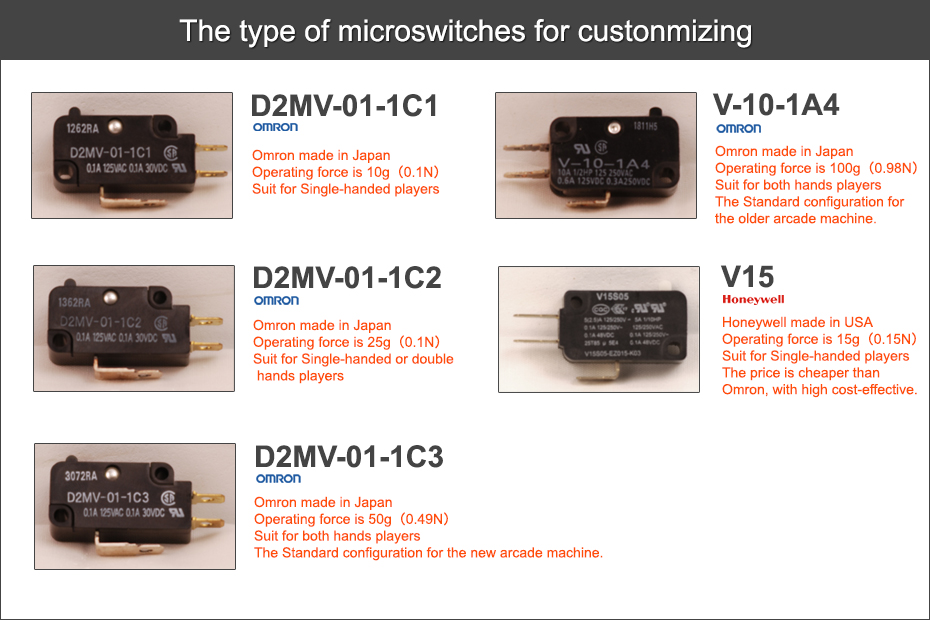

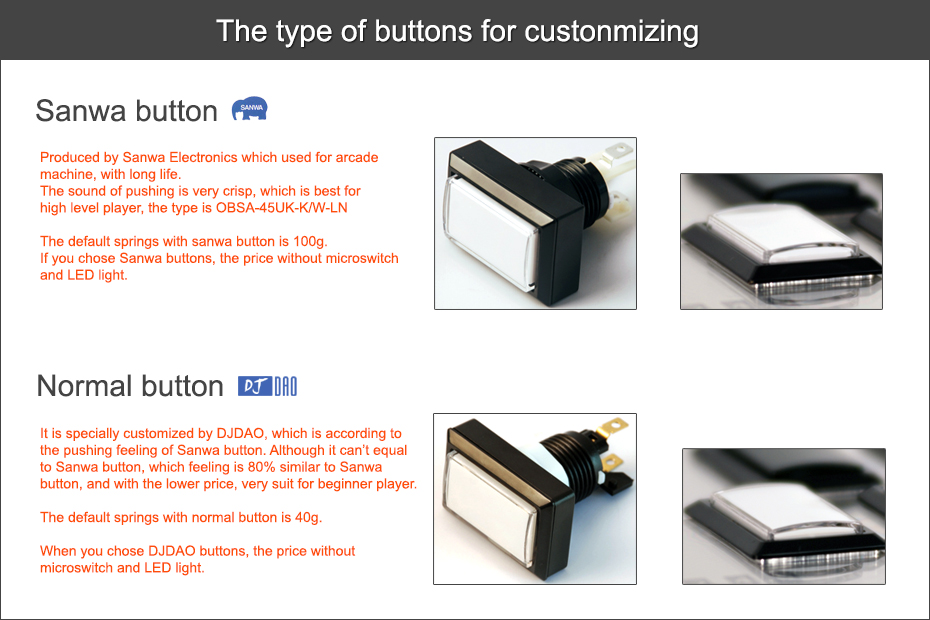

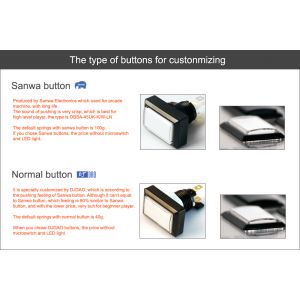

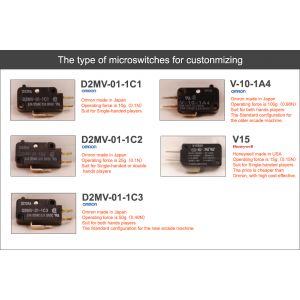

  • All buttons are designed as arcade structure , you can choose the custom DJDAO buttons and  SANHE button. The DJDAO custom buttons are cheaper and feel good, SANHE buttons are more expensive, but feel perfect. The beatmania IIDX arcade button use SANHE buttons .

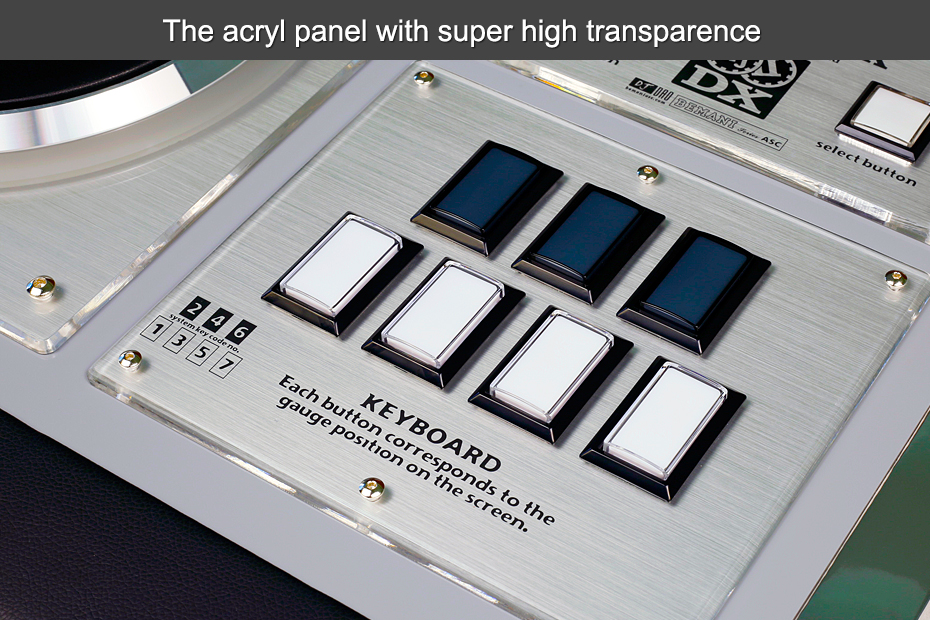

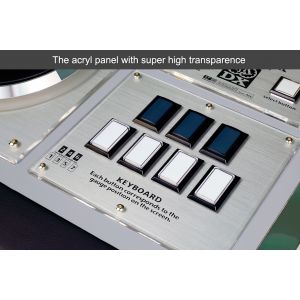

  • RES use the latest CNC cutting process and imported German acrylic material with smooth texture .
  • All DJDAO products select custom screws , the appearance parts use SHCS , which is nice and safe.

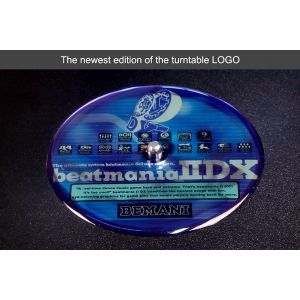

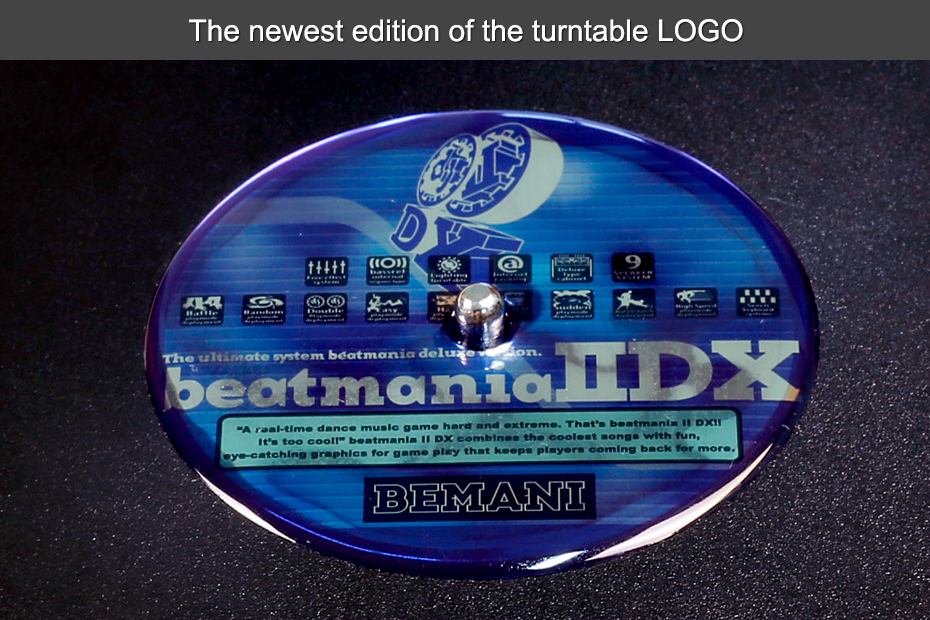

  • The LOGO of turntable is copy from arcade machine, which has exactly the same appearance and effects.
  • Because the RES structure is very compact, it can not replace 1P and 2P like other DJDAO products. Please choose and indicate 1P or 2P in your order.

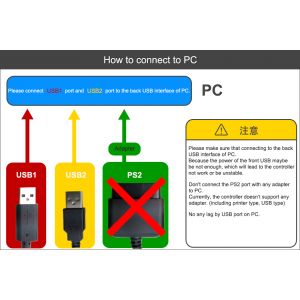

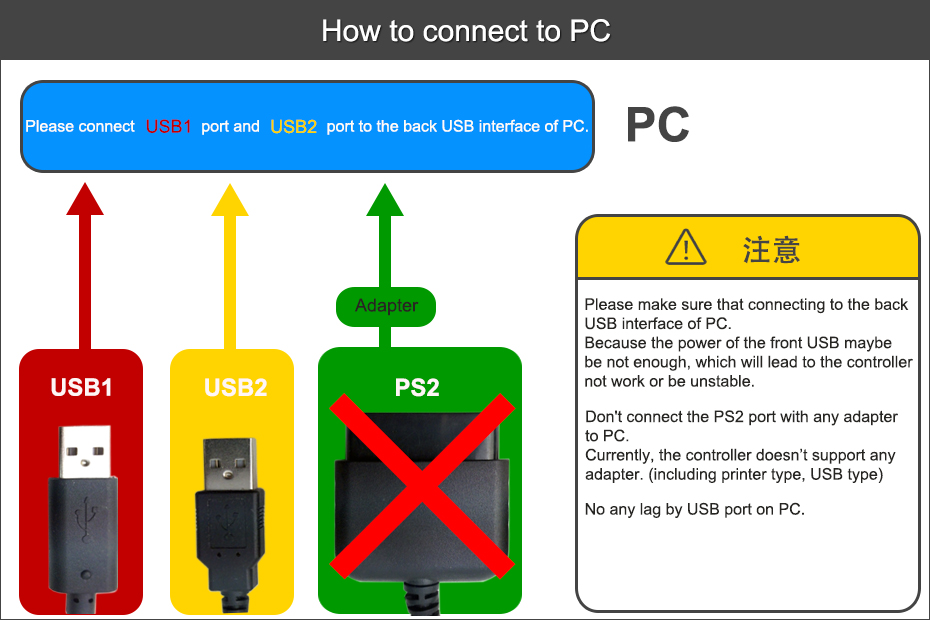

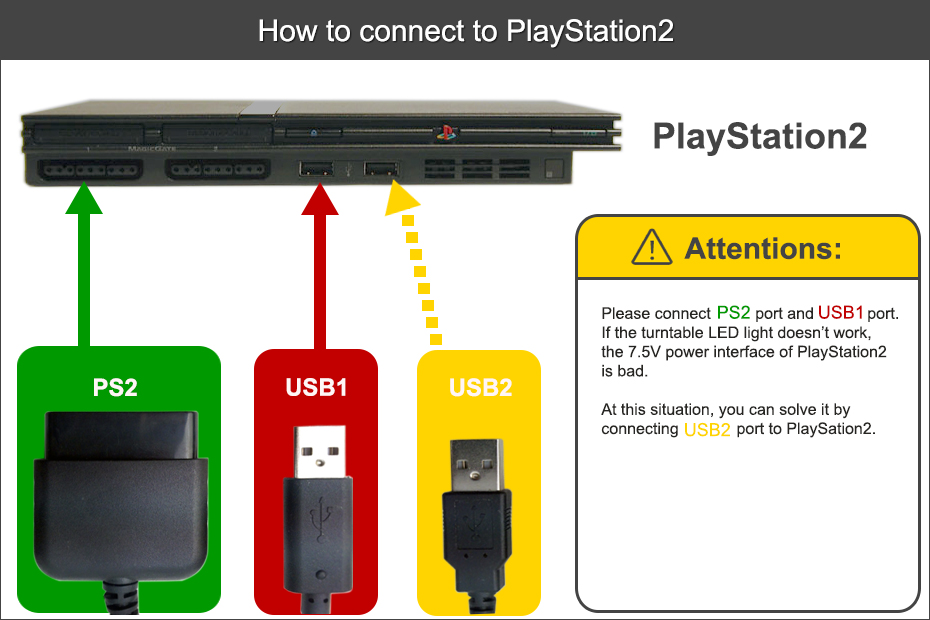

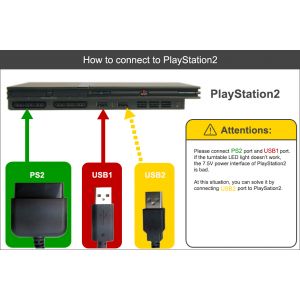

  • To use the latest 2012 models of IC, there are 3 interfaces: 1 PS2 interface , 1 USB A male and 1 USB A female. The USB A female is connected with attached  adapter for power supply.  For PS2 use PS2 interface to connect, for PC use USB A male to connect .

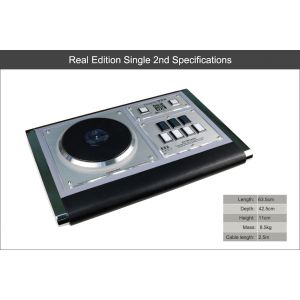

BEMANI Controller (?)

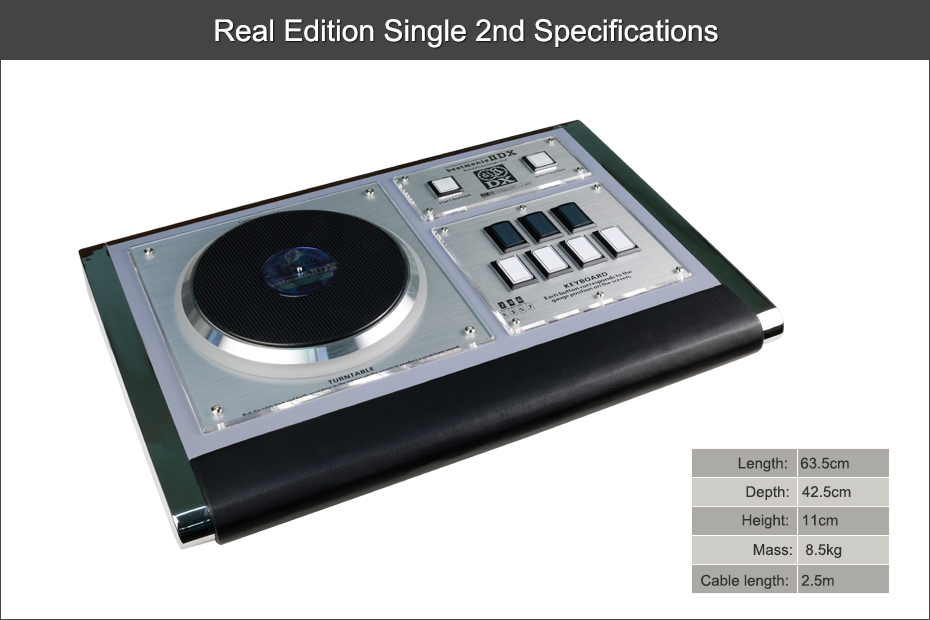

Real Edition Single
2009
625mm
470mm
100mm
10.3KG / 22.7 LBS
8.9KG
220mm
21mm
AC standard
Dicaryon LED
Highlight LED
No
USB Standard Type A plug & PlayStation 5 Port
USB standard A receptacle
5V
200cm
PS2,PS3,PC
DJ MAX Trilogy,EZ2ON,O2jam,O2mania,RDM,LR2
Windows XP,Vista,7(32bit & 64bit)
USB Converter Port
